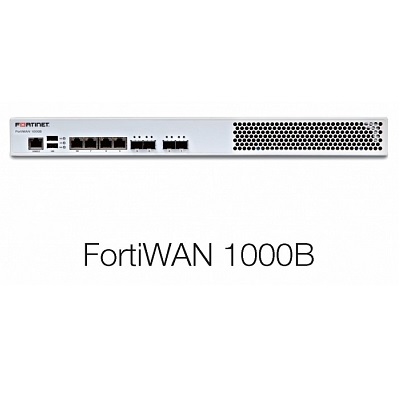

Fortinet FortiWAN FWN-1000B Appliance

Liên hệ

Thông tin chung:

FortiWAN-1000B Link Load Balancing System, supports Tunnel Routing. Base System 1Gbps throughput, upgradeable to 2Gbps. 3 x GE RJ45 ports, 4 x GE SFP ports, 1 x RJ45 HA Port, 1 x RJ45 Serial Console port, 1 x 1TB HDD Storage, Redundant PSU

Danh mục: Fortinet FortiWAN, Thiết bị cân bằng tải

Tổng quan
Thông số kỹ thuật
Sản phẩm & phụ kiện
Dịch vu & bảo hành
Tài liệu kỹ thuật
Đánh giá (0)

Tổng quan

Overview:

Fortinet’s FortiWAN intelligently balances Internet and intranet traffic across multiple WAN connections, providing additional low-cost incoming and outgoing bandwidth for the enterprise and substantially increased connection reliability. FortiWAN is supported by a userfriendly UI and a flexible policy-based performance management system. It provides a unique solution that offers comprehensive multi-WAN management that keeps costs down as well as keeping customers and users connected.

Increase Network Performance

FortiWAN intelligently aggregates multiple broadband and/or leased access lines to significantly increase Internet access performance. FortiWAN load balances Internet service requests, optimally distributing traffic across all available access links. Seven different load balancing algorithms provide the flexibility to maximize productivity from any network scenario.

Inbound Access Load Balancing

FortiWAN also load balances service requests from Internet users accessing Enterprise-hosted web, email or VPN servers. Multiple links, media and ISPs can be utilized without complex interfaces or programming with your service providers. Bandwidth can be added and removed quickly and easily.

Site-to-Site WAN Connectivity

FortiWAN gives you high-performance inter-site connectivity without the need to lease expensive links such as T1 and T3. FortiWAN aggregates multiple low-cost Internet access links to create site-to-site Virtual Private Line (VPL) tunnels of up to 1 Gbps for LAN-like performance between company locations. By using multiple carriers and media, reliability of these VPL tunnels can exceed that of traditional engineered carrier links.

Highlights

Increase Internet bandwidth
Increase site-to-site bandwidth
Improve reliability/availability
Reduce bandwidth costs
Outbound Link Load Balancing to fine-tune traffic across up to 50 links
Optimum routing to prioritize traffic for mission-critical applications
Automatic failback or failover of WAN links to ensure continuity of traffic flows
Multi-homing (inbound Link Load Balancing) to improve response times and availability for incoming requests
Virtual servers for simple server load balancing and high availability
GE fiber connectivity to Carrier and LAN services
Comprehensive usage and quality reporting

Tunnel Routing — Virtual Private Line Services

Inter-site tunnels can be created from fractional, full, multiple and fractions of multiple WAN links. Applications requiring large single-session bandwidth such as video conferencing or WAN optimization can use multiple links to build the bandwidth needed. Multi-session traffic can share an appropriately-sized tunnel. Tunnels have the same functionality as single links, supporting load balancing, fallback, failover and health detection within and between tunnels.

Thông số kỹ thuật

Specifications:

	FORTIWAN 200B	FORTIWAN 1000B	FORTIWAN 3000B
Hardware Specifications
WAN Bandwidth	200–600 Mbps*	1–2 Gbps*	3–9 Gbps*
WAN Links	up to 25**	up to 50**	up to 50**
Network Interfaces	5x GE Cu	4x SFP, 3x GE Cu	8x 10 GE SFP+, 8x GE SFP, 8x GE Cu
Storage	500 GB HDD	1 TB HDD	1 TB HDD
HA Ports	1	1	1
Power Supply	Single	Dual	Dual
System Specifications
Concurrent Connections	800,000	2,000,000	6,000,000
Connections per Second	42,000	180,000	550,000
Multi-Homing A/AAAA Records	200	400	800
Management	any network port	any network port	any network port
Dimensions
Form Factor	1U	1U	2U
Height x Width x Length (inches)	1.75 x 17.32 x 10.55	1.75 x 17.32 x 16.22	3.46 x17.32 x 23.66
Height x Width x Length (mm)	44 x 440 x 268	44 x 440 x 412	88 x 440 x 601
Weight	9.9 lbs (4.5 kg)	17.9 lbs (8.1 kg)	36.2 lbs (16.4 kg)
Environment
Input Voltage	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Typical Power Consumption	40 W	135 W	450 W
Maximum Current	110V/0.37A, 220V/0.22A	110V/5A, 220V/3A	110V/9A, 220V/4A
Heat Dissipation	110V/138 BTU/h, 220V/163 BTU/h	110V/508 BTU/h, 220V/699 BTU/h	110V/1843 BTU/h, 220V/2177 BTU/h
Operating Temperature	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)
Storage Temperature	-4–167°F (-20–75°C)	-4–167°F (-20–75°C)	-4–167°F (-20–75°C)
Humidity	10–85% non-operating, non-condensing	10–85% non-operating, non-condensing	10–85% non-operating, non-condensing
Compliance
	FCC, CE, RCM, VCCI, BSMI, UL, CB.	FCC, CE, RCM, VCCI, BSMI, UL, CB.	FCC, CE, RCM, VCCI, BSMI, UL, CB.

* Throughputs based on license(s) selected. **Additional links beyond the physical hardware ports on the appliances are supported through external VLAN switches.

VIRTUAL APPLIANCES	FORTIWAN-VM02	FORTIWAN-VM04
Hardware Specifications
Hypervisor Support	VMware ESXi / ESX 5.5, 6.0
vCPU Support (Minimum / Maximum)	1 / 2	1 / 4
Boot Memory (Minimum / Maximum)	1 GB / 2 GB
Memory Support (Minimum / Maximum)	1 GB / 16 GB
Network Interface Support (Minimum / Maximum)	Up to 10x GE / 10 GE vNICs (1 reserved for HA)
Storage Support (Minimum / Maximum)	120 GB / 1 TB
Throughput***	1 Gbps	2 Gbps

*** Actual performance values may vary depending on system configuration and network traffic. Performance metrics were observed using a Dell PowerEdge R730 server (2x Intel Xeon E5-2630v3 2.4 GHz 20 MB Cache) running VMware ESXi 5.5 with 2 GB of vRAM assigned to the 2 vCPU and 4 vCPU FortiWAN Virtual Appliances.

Sản phẩm & phụ kiện

Dịch vu & bảo hành

8×5 FortiCare Contract
8×5 Support, Hardware Replacement, Firmware and General Upgrades
24×7 FortiCare Contract
24×7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades

Tài liệu kỹ thuật

Tải tài liệu kỹ thuật cho sản phẩm:

FortiWAN-1477322924.pdf (0 lần tải)
